Major Caveat - I am no programmer!

So let's just get that over with.

I am well aware that I couldn't program my way out of a wet paper bag, however that is one of the goals of this project.  DEVELOP BETTER PROGRAMMING SKILLS.

Right now, all of my code is ... um... standard linear with functions....  No object orientation unless I stole a segment or snippet from somewhere.  (this is me... ducking)

That said, I am challenged with four languages here to make this functional.

Arduino code is based upon C++.... And I swear I'm going to learn how to code for Arduino using Objects.

The Raspberry Pi communicates with the Arduino in Python.     - This is currently up for debate.
  1. Continue writing in Python, but rewrite in OO
  2. Hunker down and compile it in C++,
  3. or write in PHP CLI.

Commands to the Arduino, and results from the Arduino are stored in MySQL

And the Console interface is PHP/MySQL.

I know that if I develop classes for each of the tables in MySQL, they are essentially (I said essentially!) transferable between the languages.

So... Where to start...  How about the code that runs on the main Arduino....
I apologize up front to all of you "Real Programmers" ...

/*
Autonomous_xx.ino is meant to receive commands via USB serial, to manage a couple DC motors, and a Sonar pod.
In turn, the Arduino reads sensors on the I2C bus, and returns the telemetry to the host.

The overall goal is to have a mostly autonomous rover.

Written  by Michael Ball  (unix_guru@hotmail.com)  September 2013

Commands are sent via serial in a comma delimited string format.

  "99", "Command", "Param", "UID", "NOW", "CRLF"

  "99" is the start character.  Indicates start of new command
  "Command" is an integer defined below
  "Param" is an integer parameter for the particular command  ie:  99,12,100  would indicate turn left for 100ms
  "UID"  is the hosts identifier for this particular command, so that we can send back validation of completion
  "NOW"  is the Arduino's current "millis" count from last reset.  Useful mostly for debugging and grouping results.

Results are returned via serial in a comma delimited string format as well, initiated with a result type identifier:

  "RST",  indicates that the Arduino has just been reset, and is followed by current version of running code.
  "RDY",  follwed by "UID, "CRLF"  is a short comma delimited string that indicates successful completed of task "UID"
  "SNSR", is a comma delimited string that returns the values of the various telemetry sensors.
        "Current millis", "Motion Type", "Accel X", "Accel Y", "Accel Z", "Compass Heading", "Sonar Pod Position",
        "Distance Ahead", "Distance Behind", "Distance Left", "Distance Right", "Wheel ticks left", "Wheel ticks Right",
        "Battery Voltage", Most Recent UID", "CRLF"
  "SCAN", is a comma delimited string that returns the values of the two Sonar Range Finders upon a request to scan.
        "millis at start of scan", "Radial Posion of Pod", "Front Sonar in Inches", "Rear Sonar in Inches", "Requesting UID", "CRLF"

  And then there are various "Motion Results"  that indicate the rovers state of motion.
  "MVST"  - Stopped,        "MVFW"  - Moving forward,      "MVRV"  - Moving reverse,
  "MVTL", - Turning left,   "MVTR"  - Turning Right,       "MVTT"  - Turning TO a compass heading,
  "MVEB"  - Evasive backup  followed by "MVEL"  or "MVER"  Left or right evasive turn depending on greated amount of space
  "MVEF"  - Evasive forward followed by "MVEL"  or "MVER"  Left or right evasive turn depending on greated amount of space


*/



// Motion Commands
#define STOP 0
#define WAIT 1
#define SCAN 2
#define LOOK_LEFT 3
#define LOOK_RIGHT 4
#define LOOK_AHEAD 5
#define LOOK_TOWARD 6

#define MOVE_FORWARD 10
#define MOVE_REVERSE 11
#define TURN_LEFT 12
#define TURN_RIGHT 13
#define SPIN_LEFT 14
#define SPIN_RIGHT 15
#define TURN_TOWARD 16
#define IN_MOTION 17
#define SET_SPEED 18

#define DUMP_SENSORS 20
#define DUMP_SOUNDINGS 21
#define READ_HEADING 22
#define READ_ACCEL 23
#define READ_DISTANCE 24

//Pin 0   Input  RX
//Pin 1   Output TX
//PIN 2   Input  MaxSonar Front
//PIN 3   Output PWM Motor A
//Pin 4   Output Sensor Pod Servo
//Pin 5   Input
//Pin 6   UNUSED
//Pin 7   Input  MaxSonar Rear
//PIN 8   Output Brake Motor B
//PIN 9   Output Brake Motor A
//PIN 10  Output
//PIN 11  Output PWM Motor B
//PIN 12  Output DIR Motor A
//PIN 13  Output DIR Motor B
//PIN A5  Input  Voltage Sense Control Battery
//PIN A4  UNUSED
//PIN A3  UNUSED
//PIN A2  UNUSED
//PIN A1  UNUSED
//PIN A0  UNUSED




#include <string.h>
#include <ctype.h>

// Include the Wire library so we can start using I2C.
#include <Wire.h>
// Include the Love Electronics ADXL345 library so we can use the accelerometer.
#include <ADXL345.h>

// Declare a global instance of the accelerometer.
ADXL345 accel;



// Register Map for Encoder Arduino on I2C
// Address     Register Description
// 0x00     Status Register
// 0x01     Left ticks - MSB
// 0x02     Left ticks - LSB
// 0x03     Right ticks - MSB
// 0x04     Right ticks - LSB
// 0x05     Front Distance - MSB
// 0x06     Front Distance - LSB
// 0x07     Rear Distance - MSB
// 0x08     Rear Distance - LSB
// 0x09     Right Distance - MSB
// 0x0A     Right Distance - LSB
// 0x0B     Left Distance - MSB
// 0x0C     Left Distance - LSB
// 0x0D     Mode Register
// 0x0E     Configuration Register
// 0x0F     Identification Register


#define ENCODER_SLAVE 0x29          // I2C address of Arduino running wheel encoders and IR proximity sensors
byte i2cData[16];


int CPUVoltsPin = A0;
int LAMPS = A1;
int FrntPIN = 2;
int RearPIN = 7;

int CPUVolts = 0;

int HMC6352SlaveAddress = 0x42;
int HMC6352ReadAddress = 0x41; //"A" in hex, A command is:

AccelerometerScaled AccScaled;
float CurrentHeading = 0;
float PreviousHeading = 0;
float xAxisGs = 0;
float anVolt=0,anVoltR=0;

int SOC = 0;
int Command = 0;
int Parameter = 0;
int UID = 0;
int ScanPos = 0;       // Last Scan Position
unsigned long ScanTime; // Time when the most recent scan started.  (Index to keep scans grouped)
unsigned long ReportTime; // Time when the most recent sensor dump was sent.

//variables to store motion states

int motion=STOP, spd=100, already_stopped=0;             // Cuurent state of motion :  HALT, MOVE_FORWARD, MOVE_REVERSE, TURN_LEFT, TURN_RIGHT
unsigned long MotionStart, MotionStop, now;              // Holders for the millis() dependant start and stop timers.

//variables needed to store values
int fpulse, rpulse, DistanceAhead, DirectAhead, DistanceBehind, DirectBehind, DirectRight, DirectLeft;
int pos=90;            // Starting position of Sensor pod.... looking straight ahead.
#include <DHT22.h>

// Data wire is plugged into port 6 on the Arduino
// Connect a 4.7K resistor between VCC and the data pin (strong pullup)
#define DHT22_PIN 6

// Setup a DHT22 instance
DHT22 myDHT22(DHT22_PIN);


#include <Servo.h>

Servo myservo;  // create servo object to control a servo
                // a maximum of eight servo objects can be created


void setup()
{

  HMC6352SlaveAddress = HMC6352SlaveAddress >> 1; // I know 0x42 is less than 127, but this is still required

  myservo.attach(4);              // attaches the servo on pin 4 to the servo object
  myservo.write(0);              // tell servo to go to position 0
  delay(15);
  Get_Distance();
  DirectRight=DistanceAhead;     // Get a handle on how close we are to objects left and right.
  DirectLeft=DistanceBehind;

  myservo.write(pos);              // tell servo to go to position in variable 'pos'
  delay(15);
  Get_Distance();
  DirectAhead=DistanceAhead;
  DirectBehind=DistanceBehind;

  ReportTime = millis();

  Serial.begin(57600);
  Serial.println("RST, Running Autonomous_26. 131010");
  // Start the I2C Wire library so we can use I2C to talk to the Accelerometer and Compass.

  Wire.begin();

   // Create an instance of the accelerometer on the default address (0x1D)
  accel = ADXL345();

  // Set the range of the accelerometer to a maximum of 2G.
  accel.SetRange(2, true);
  // Tell the accelerometer to start taking measurements.
  accel.EnableMeasurements();

   //Setup Motor Channel A
  pinMode(12, OUTPUT); //Initiates Motor Channel A pin
  pinMode(9, OUTPUT); //Initiates Brake Channel A pin

  //Setup Motor Channel B
  pinMode(13, OUTPUT); //Initiates Motor Channel A pin
  pinMode(8, OUTPUT);  //Initiates Brake Channel A pin

  pinMode(A1, OUTPUT);  //Initiates Brake Channel A pin
  analogWrite(LAMPS, 255);    //Turn OFF lamps


  randomSeed(analogRead(0));

}


void loop()
{

  now = millis();
  Motion();

  Read_Sensors();

  // if there's any serial available, read it:
  if (Serial.available()) {
      SOC= Serial.parseInt();        // Start of Command  sequence . Must be "99"
      Command= Serial.parseInt();
      Parameter=Serial.parseInt();
      UID=Serial.parseInt();

    if (SOC == 99) {                // Validate that command starts with "99"
      Serial.print("CMD, ");
      Serial.print(Command); Serial.print(", ");
      Serial.print(Parameter);  Serial.print(", ");
      Serial.print(UID); Serial.print(", "); Serial.println(now);

      switch (Command) {
        case STOP:
           stp();
           Serial.print("RDY, ");  Serial.println(UID);
        break;

        case SCAN:
           Scan_Local(Parameter);
           Serial.print("RDY, "); Serial.println(UID);
        break;

        case LOOK_TOWARD:
           pos = constrain(Parameter, 0, 180);  // Servo can only take 0-180
           Look_To(pos);
           Serial.print("RDY, ");  Serial.println(UID);
        break;

        case LOOK_AHEAD:
           pos=90;                          // Center sensor pod.
           Look_To(pos);
           Get_Distance();
           DirectAhead=DistanceAhead;
           DirectBehind=DistanceBehind;
           Serial.print("RDY, "); Serial.println(UID);
        break;

        case LOOK_RIGHT:
           pos = 0;
           Look_To(pos);
           Get_Distance();
           DirectRight=DistanceAhead;     // Get a handle on how close we are to objects left and right.
           DirectLeft=DistanceBehind;
           Serial.print("RDY, "); Serial.println(UID);
        break;

        case LOOK_LEFT:
           pos = 180;
           Look_To(pos);
           Get_Distance();
           DirectLeft=DistanceAhead;     // Get a handle on how close we are to objects left and right.
           DirectRight=DistanceBehind;
           Serial.print("RDY, "); Serial.println(UID);
        break;

        case DUMP_SENSORS:
           Send_Sensors();
           Serial.print("RDY, "); Serial.println(UID);
        break;

        case MOVE_FORWARD:
           motion=MOVE_FORWARD;
           MotionStart=millis();
           MotionStop=MotionStart+Parameter;
           Serial.print("RDY, "); Serial.println(UID);
        break;

        case MOVE_REVERSE:
           motion=Command;
           MotionStart=millis();
           MotionStop=MotionStart+Parameter;
           Serial.print("RDY, ");  Serial.println(UID);
        break;

        case TURN_LEFT:
           motion=Command;
           MotionStart=millis();
           MotionStop=MotionStart+Parameter;
           Serial.print("RDY,"); Serial.println(UID);
        break;

        case TURN_RIGHT:
           motion=Command;
           MotionStart=millis();
           MotionStop=MotionStart+Parameter;
           Serial.print("RDY,");  Serial.println(UID);
        break;

        case TURN_TOWARD:
           Turn_To(Parameter);  Serial.print("RDY,"); Serial.println(UID);
        break;

       case SET_SPEED:
           spd = constrain(Parameter, 0, 250);  // Speed is a single byte: 0 is full STOP: 255 is full GO
           Serial.print("RDY,"); Serial.println(UID);
        break;

        default:
           Serial.print("RDY, ");  Serial.println(UID);
        break;

      }                      // Close switch statement
   } else {                  // Close command validation 'if'
      if (UID > 0) {
        Serial.print("FAIL, ");
        Serial.print(Command);        Serial.print(", ");
        Serial.print(Parameter);      Serial.print(", ");
        Serial.print(UID);            Serial.print(", ");
        Serial.println(now);
      }
   }
  }                          // Close serial port content validation
}                            // Close 'loop'


void Read_Sensors()
{
      // Read the *scaled* data from the accelerometer
      // This useful method gives you the value in G thanks to the Love Electronics library.
      AccScaled = accel.ReadScaledAxis();
      PreviousHeading = CurrentHeading;
      CurrentHeading=Get_Compass();
      delay(10);     // waits 15ms for the servo to reach the position
      Get_Distance();
      if (pos == 90) {
         DirectAhead=DistanceAhead;          // Get distance directly ahead and behind for obstacle avoidance
         DirectBehind=DistanceBehind;
      }
      CPUVolts = analogRead(CPUVoltsPin);

      Request_Encoder();          // Get left and right encoder "ticks" since last read
    if (ReportTime < millis()){    // Dont send dumps any more frequent than once per second
      ReportTime = millis()+1000;
      Send_Sensors();
    }




void Scan_Local(int incr) {


  if (!incr)  incr=1;
  ScanTime = millis();          // Time the most recent scan started
  for(pos=90; pos > 0; pos -= incr)         // goes from 0 degrees to 180 degrees
  {                                       // in steps of 5 degree
     myservo.write(pos);                  // tell servo to go to position in variable 'pos'
     delay(5);       // waits 15ms for the servo to reach the position
     Get_Distance();
     Serial.print("SCAN,"); Serial.print(ScanTime); Serial.print(", ");
     Serial.print(90-pos);  Serial.print(", "); Serial.print(DistanceAhead); Serial.print(", ");
     Serial.print(270-pos);  Serial.print(", "); Serial.println(DistanceBehind);


  }
  Get_Distance();
  DirectLeft=DistanceAhead;          // Get distance directly ahead and behind for obstacle avoidance
  DirectRight=DistanceBehind;
  Send_Sensors();
  myservo.write(180);              // tell servo to go to position in variable 'pos'
  delay(10);                     // waits 15ms for the servo to reach the position
  for(pos = 180; pos> 90; pos -= incr)       // Return to Center position
  {
      myservo.write(pos);              // tell servo to go to position in variable 'pos'
      delay(5);       // waits 15ms for the servo to reach the position
     Get_Distance();
     Serial.print("SCAN,"); Serial.print(ScanTime);  Serial.print(", ");
     Serial.print(270-pos);  Serial.print(", ");Serial.print(DistanceBehind);  Serial.print(", ");
     Serial.print(360-pos);  Serial.print(", ");Serial.println(DistanceAhead);
 }
  Get_Distance();
  DirectAhead=DistanceAhead;          // Get distance directly ahead and behind for obstacle avoidance
  DirectBehind=DistanceBehind;
}


float Get_Compass()
{
      //Time to read the Compass.
    //"Get Data. Compensate and Calculate New Heading"
    Wire.beginTransmission(HMC6352SlaveAddress);
    Wire.write(HMC6352ReadAddress);              // The "Get Data" command
    Wire.endTransmission();

  //time delays required by HMC6352 upon receipt of the command
  //Get Data. Compensate and Calculate New Heading : 6ms
  delay(6);

  Wire.requestFrom(HMC6352SlaveAddress, 2); //get the two data bytes, MSB and LSB

  //"The heading output data will be the value in tenths of degrees
  //from zero to 3599 and provided in binary format over the two bytes."
  byte MSB = Wire.read();
  byte LSB = Wire.read();

  float HeadingSum = (MSB << 8) + LSB; //(MSB / LSB sum)
  float HeadingInt = HeadingSum / 10;
  return HeadingInt;
}

void Get_Distance()
{
    pinMode(FrntPIN, INPUT);
    pinMode(RearPIN, INPUT);

    //Used to read in the pulse that is being sent by the MaxSonar device.
    //Pulse Width representation with a scale factor of 147 uS per Inch.
    // We are getting 5 samples and averaging the results.

    fpulse=0; rpulse=0;
    for(int i=0;i<9;i+=1)
    {
       delay(7);
       fpulse += (pulseIn(FrntPIN, HIGH)/147);       //147uS per inch
       delay(7);
       rpulse += (pulseIn(RearPIN, HIGH)/147);       //147uS per inch
    }
    DistanceAhead = fpulse/10;
    DistanceBehind = rpulse/10;

}




// Output the data down the serial port.
//  Sensors: accel x,y,z, compass heading, Distance ahead,Behind, Temperature, Humidity, Battery\n

void Send_Sensors() {
   // Tell us about the this data, but scale it into useful units (G).
   Serial.print("SNSR,");  Serial.print( now);  Serial.print(","); Serial.print(motion);   Serial.print(",");

   Serial.print(AccScaled.XAxis);   Serial.print(",");
   Serial.print(AccScaled.YAxis);   Serial.print(",");
   Serial.print(AccScaled.ZAxis);   Serial.print(",");
   Serial.print(CurrentHeading);    Serial.print(",");
   Serial.print(pos);               Serial.print(",");
   Serial.print(DirectAhead);       Serial.print(",");
   Serial.print(DirectBehind);      Serial.print(",");
   Serial.print(DirectLeft);        Serial.print(",");
   Serial.print(DirectRight);       Serial.print(",");
   Serial.print(i2cData[1]);        Serial.print(",");
   Serial.print(i2cData[2]);        Serial.print(",");
   Serial.print(CPUVolts);          Serial.print(",");
   Serial.print(UID);               Serial.println();

}



void Motion()
{

  if (MotionStop < millis()) {
    if (motion != STOP) {
      analogWrite(3, 0);    //Spins the motor on Channel A at speed 0
      analogWrite(11, 0);   //Spins the motor on Channel B at speed 0
      motion = STOP;
    }
  }
  evade();                 // Check surroundings for threats or obstacles
  switch(motion)
    {
      case STOP:
       if(already_stopped != 0) {
         Serial.print("MVST, "); Serial.print(MotionStop); Serial.print(", "); Serial.println(UID);
         analogWrite(3, 0);    //Spins the motor on Channel A at speed 0
         analogWrite(11, 0);   //Spins the motor on Channel B at speed 0
         motion = STOP;
         already_stopped = 0;
       }
      break;
      case IN_MOTION:
        already_stopped = 1;
      break;
      case MOVE_FORWARD:
         Serial.print("MVFW, "); Serial.print(MotionStart); Serial.print(", "); Serial.print(MotionStop); Serial.print(", "); Serial.println(UID);
         motion = IN_MOTION;
            //Motor A dir
             digitalWrite(12, 0);  //Establishes direction of Channel A
             digitalWrite(9, LOW);   //Disengage the Brake for Channel A
             analogWrite(3, spd);    //Spins the motor on Channel A at speed

             //Motor B dir
             digitalWrite(13, 0); //Establishes direction of Channel B
             digitalWrite(8, LOW);   //Disengage the Brake for Channel B
             analogWrite(11, spd);   //Spins the motor on Channel B at speed

      break;
      case MOVE_REVERSE:
        Serial.print("MVRV, "); Serial.print(MotionStart); Serial.print(", "); Serial.print(MotionStop); Serial.print(", "); Serial.println(UID);

         motion = IN_MOTION;
             //Motor A dir
             digitalWrite(12, 1);  //Establishes direction of Channel A
             digitalWrite(9, LOW);   //Disengage the Brake for Channel A
             analogWrite(3, spd);    //Spins the motor on Channel A at speed

             //Motor B dir
             digitalWrite(13, 1); //Establishes direction of Channel B
             digitalWrite(8, LOW);   //Disengage the Brake for Channel B
             analogWrite(11, spd);   //Spins the motor on Channel B at speed

      break;
      case  TURN_LEFT:
        Serial.print("MVTL, "); Serial.print(MotionStart); Serial.print(", "); Serial.print(MotionStop); Serial.print(", "); Serial.println(UID);
         motion = IN_MOTION;
             //Motor A dir
             digitalWrite(12, 0);  //Establishes direction of Channel A
             digitalWrite(9, LOW);   //Disengage the Brake for Channel A
             analogWrite(3, spd);    //Spins the motor on Channel A at speed

             //Motor B dir
             digitalWrite(13, 1); //Establishes direction of Channel B
             digitalWrite(8, LOW);   //Disengage the Brake for Channel B
             analogWrite(11, spd);   //Spins the motor on Channel B at speed

      break;
      case  TURN_RIGHT:
         Serial.print("MVTR, "); Serial.print(MotionStart); Serial.print(", "); Serial.print(MotionStop); Serial.print(", "); Serial.println(UID);
         motion = IN_MOTION;
             //Motor A dir
             digitalWrite(12, 1);  //Establishes direction of Channel A
             digitalWrite(9, LOW);   //Disengage the Brake for Channel A
             analogWrite(3, spd);    //Spins the motor on Channel A at speed

             //Motor B dir
             digitalWrite(13, 0); //Establishes direction of Channel B
             digitalWrite(8, LOW);   //Disengage the Brake for Channel B
             analogWrite(11, spd);   //Spins the motor on Channel B at speed

      break;
    }
}


void Look_To(int pos)
{
    delay(5);       // waits 15ms for the servo to reach the position
    myservo.write(pos);                  // tell servo to go to position in variable 'pos'
    delay(5);       // waits 15ms for the servo to reach the position

}

float Turn_To(float NewHeading)
{
  float CurrentHeading = Get_Compass();
  Serial.print("MVTT, "); Serial.print(MotionStart); Serial.print(", "); Serial.print(MotionStop);  Serial.print(", "); Serial.println(UID);

  if (CurrentHeading < NewHeading)
  {
     while (CurrentHeading < NewHeading)      // Check for CurrentHeading if it's
     {                                        // higher than the NewHeading, rotate
       motion=TURN_RIGHT;
       MotionStart=millis();
       MotionStop=MotionStart+Parameter;
       Motion();
       CurrentHeading = Get_Compass();        // ****************************************
     } return CurrentHeading;                 // Need to add "determine closest direction"
  } else while (CurrentHeading > NewHeading)
     {
       motion=TURN_LEFT;
       MotionStart=millis();
       MotionStop=MotionStart+Parameter;
       Motion();
       CurrentHeading = Get_Compass();
     } return CurrentHeading;


}

void evade()
{

  if(DirectAhead < 6) {          // Obect in front is closer than 8 inches
    Serial.print("MVEB,"); Serial.print(", "); Serial.println(UID);
    if(DirectBehind > 6) {        // Make sure we have room to back up
      motion=MOVE_REVERSE;
      MotionStart=millis(); MotionStop=MotionStart+600; // Back up a few inches
    }  else {
         if(DirectLeft > 12 && DirectLeft > DirectRight) {  // *********** Determine best turn right or left *****************
             Serial.print("MVEL,"); Serial.print(", "); Serial.println(UID);
             motion=TURN_LEFT;
             MotionStart=millis(); MotionStop=MotionStart+600; // Back up a few inches
         } else if (DirectRight > 12) {
             Serial.print("MVER,"); Serial.print(", "); Serial.println(UID);
             motion=TURN_RIGHT;
             MotionStart=millis(); MotionStop=MotionStart+600; // Back up a few inches
         }
    }


  } else if(DirectBehind < 6) {          // Obect behind is closer than 6 inches
    Serial.print("MVEF,"); Serial.print(", "); Serial.println(UID);
    if(DirectAhead > 10) {        // Make sure we have room to go forward
      motion=MOVE_FORWARD;
      MotionStart=millis(); MotionStop=MotionStart+600; // Move forward a few inches
    }  else {
         if(DirectLeft > 12 && DirectLeft > DirectRight) {  // *********** Determine best turn right or left *****************
             Serial.print("MVEL,"); Serial.print(", "); Serial.println(UID);
             motion=TURN_LEFT;
             MotionStart=millis(); MotionStop=MotionStart+600; // Back up a few inches
         } else if (DirectRight > 12) {
             Serial.print("MVER,"); Serial.print(", "); Serial.println(UID);
             motion=TURN_RIGHT;
             MotionStart=millis(); MotionStop=MotionStart+600; // Back up a few inches
         }
    }
  }
}


void stp()

  digitalWrite(9, HIGH);  //Engage the Brake for Channel A
  analogWrite(3, 0);    //Spins the motor on Channel A at speed

  digitalWrite(8, HIGH);  //Engage the Brake for Channel B
  analogWrite(11, 0);   //Spins the motor on Channel B at speed
  MotionStop = millis();
  Serial.print("MVST, "); Serial.print(MotionStop); Serial.print(", "); Serial.println(UID);
  motion = STOP;
}



void Request_Encoder()
{
  Wire.beginTransmission(ENCODER_SLAVE);
  Wire.write(0x00);
  Wire.endTransmission();
  Wire.requestFrom(ENCODER_SLAVE,16);

  for (int i = 0; i < 16; i++)
  {
    i2cData[i] = Wire.read();
  }
}


void Print_Encoder()
{
  if (i2cData[0] == 1) {
     Serial.print("Encoder:  ");
     for (int i = 0; i < 16; i++)
     {
        Serial.print(",  ");
       Serial.print(i2cData[i],HEX);

     }
  Serial.println();
  }

Wednesday 9 October 2013

My trials and tribulations in making an autonomous rover.

This being my first post, and being well into this project... let's skip the formalities and simply describe what I'm attempting to build.

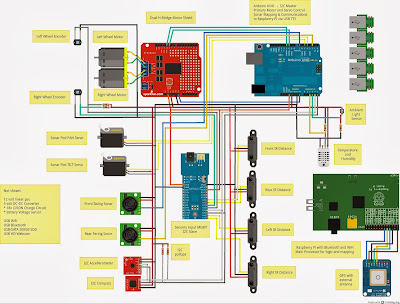

The project is an autonomous Rover powered by a Raspberry Pi and a pair of Arduinos.

The Raspberry Pi manages the Webserver console, the MySQL database, and communications with the Arduinos, and the GPS.


The First Arduino manages Motor control for two DC motors (via a dual H-Bridge motor shield) as well as running the two servo motors and two sonars for the scanning pod.  This rover steers "tank style" as opposed to using a servo to manage front steering.

This Arduino is also the I2C "master", and manages communications with an Accelerometer, a compass, a thermometer/humidity sensor, and the second Arduino.

The Second Arduino's sole job is to constantly scan the Analog values for front and back, right and left, Infrared distance sensors , as well as manage counters for left and right wheel encoders.

The Arduino's are programmed from the Raspberry Pi using the native "Sketch" tool.
The Pi itself communicates via Serial port to the Arduino using Python and "twisted". Managing a queue of commands to the Arduino, and statistics out from the Arduino.  MySQL stores all of this information for processing and reporting.


The front end is PHP served from the Apache Webserver onboard.
